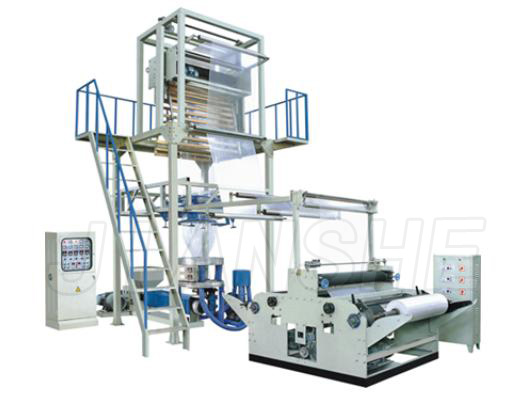

SJ-C Rotary Head Film
USE

This machine is suitable for blowing high-low pressure polyethylene and linear LLDPE film, which have been widely used for producing laminating film, packing film, agricultural covering film, bag or film for textile and clothing and other packing material
Performance and Characteristics

The main motor adopts inverter control of motor speed to improve the speed regulating stability. The die head can be rotated to left and right within 360 angles, it can strengthen the intensity and evenness of plastic film. The screw and material barrel adopt 38 chrome-molybdenum aluminum which has been nitrogen treated and the traction frame adopts lifting type. The coiling parts adopts pressure friction rewinding or center rewinding, which is driven by torque motor, with even and smooth rewinding and easy roll changing.
Main Technical Variables
Model SJ-C55 SJ-C60
Suitable material 55mm 60mm
Screw diameter L/D 28:1 L/D 28:1
Screw i/d length 10100r/min 10100r/min
Main motor power 15kw 18.5kw
Output 50kg/h 65kg/h
Die size 80-150mm 100-180mm
Width of blowing film 800mm 1000mm
Thickness of blowing film 0.01-0.10mm 0.01-0.10mm
Weight of overall 2300kg 3000kg
Overall dimensions(LxWxH) 600020004500mm 650022004600mm
